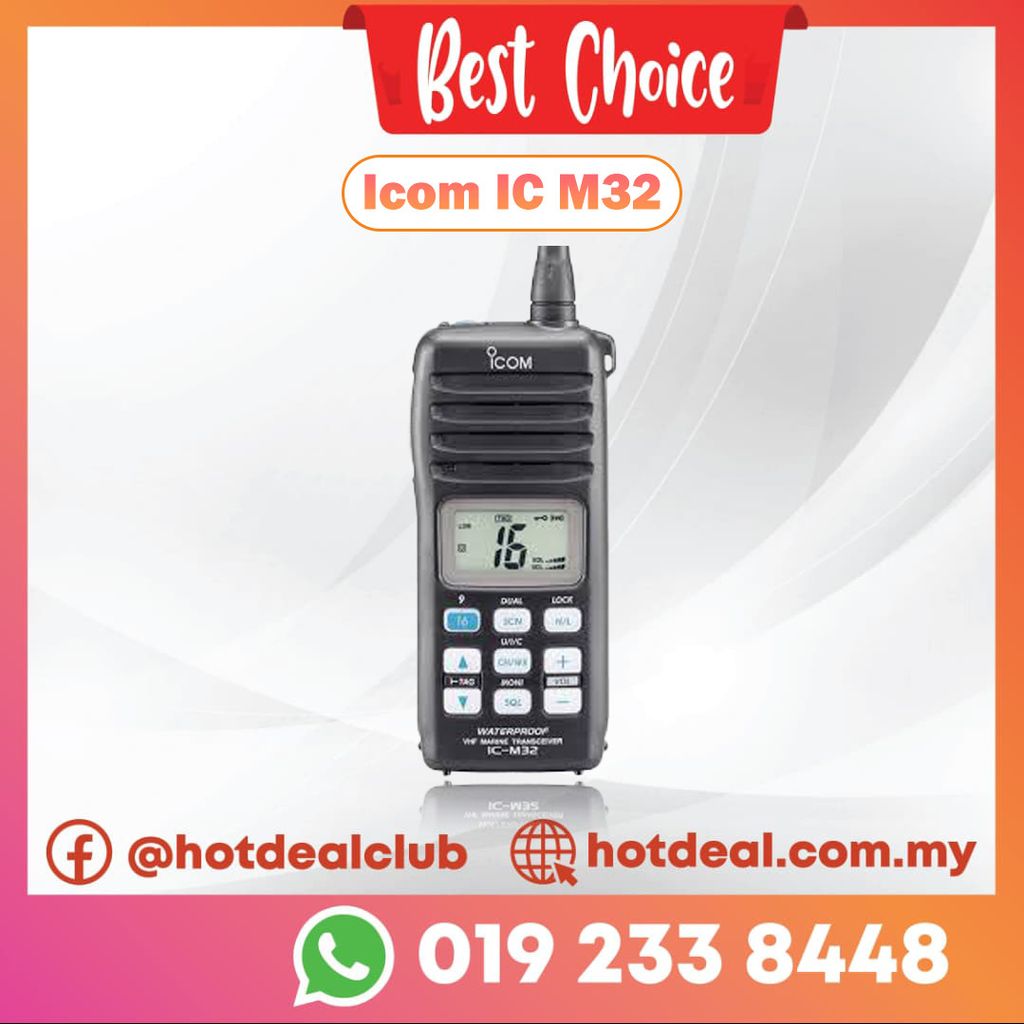

ICOM IC-M32 Waterproof VHF Marine Radio

RM 600.00
Features:
  1. Rugged Waterproof Protection
  2. Equivalent to JIS Grade 7 (1m depth for 30 Minutes)
  3. Easy-to-see LCD with Backlighting
  4. Simple to Use Backlit 9 Button Keypad
  5. Ni-Cd Battery Pack & Desktop Charger Included
  6. Powerful 5W Output Power
  7. Weather Alert Function
  8. Convenient Tag Scanning
  9. Dual / Tri-watch Functions
  10. 4-Step Battery Life Indicator & 2-Step Power Saver
  11. Squelch & Volume Level Indicator
  12. Instant Access to Ch 16

Specifications:

General

ICOM IC-M32 Frequency Range
Tx
156.025-157.425 MHz
Rx
156.050-163.275 MHz
ICOM IC-M32 Usable channels
USA, CAN, INT, WX channels
ICOM IC-M32 Type of emission
16K0G3E (FM)
ICOM IC-M32 Current drain
(at 7.5V DC)
Tx
at 5W output
1.5A typical
Rx
at AF max.
200mA typical

Stand-by
20mA typica
ICOM IC-M32 Operating temperature range
-20°C to +60°C;
 -4°F to +140°F
ICOM IC-M32 Antenna impedance
50Ω (STUD)
ICOM IC-M32 Dimensions (projections not included)
61(W)x135(H)x41(D)mm;
213/32(W)x55/16(H)x15/8(D)in
ICOM IC-M32 Weight (approx.; with BP-224)
360g; 12.7oz

Transmitter
ICOM IC-M32 Output power
5W (High), 1W (Low)
ICOM IC-M32 Modulation system
Variable reactance frequency modulation
ICOM IC-M32 Max. freq. deviation
±5kHz
ICOM IC-M32 Frequency error
Less than ±10ppm
ICOM IC-M32 Spurious emissions
Less than -68dBc
Adj. channel power
More than 70dB
Audio harmonic distortion
Less than 10% (at 60% mod.
Residual modulation
More than 40dB

Receiver
Intermediate freq.
1st 21.7MHz, 2nd 450kHz
Sensitivity
0.22μV typical
SQL sensitivity (at threshold)
Less than 0.35μV
Adjacent. Ch. selectivity
70dB typical
Spurious response
70dB typical
Intermodulation rejection
70dB typical
Hum and noise ratio
More than 40dB
ICOM IC-M32 Audio output power
0.35W typical at 10% distortion with a 8Ω load
