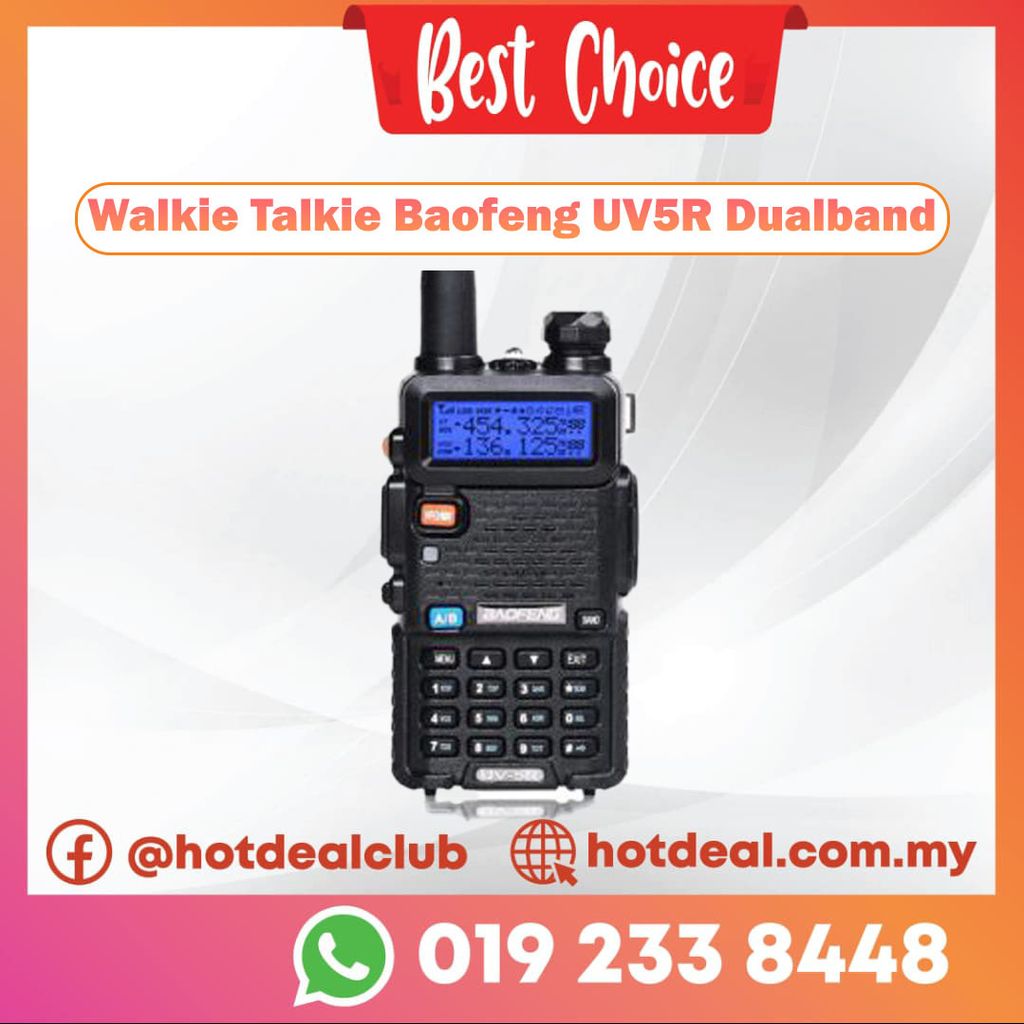

Walkie talkie Baofeng UV-5R Dual Band UHF/VHF

RM 88.00

BAOFENG UV-5R 4W
136-174/400-480Mhz

BAOFENG UV-5R The transceiver is a micro-miniature multiband
FM transceiver with extensive receive frequency coverage,
providing local-area two-way amateur communications along with unmatched monitoring capability

VHF/ UHF DUAL-BAND TWO WAY RADIO

  • Frequency Range: 136-174 / 400-480MHz
  • Dual-Band Display, Dual Freq. Display, Dual-Standby
  • Output Power: 4 /1Watts
  • 128 Channels
    50 CTCSS and 104 CDCSS
  • Built-in VOX Function
  • 1750Hz Brust Tone
  • FM Radio (65.0MHz-108.0MHz)
  • LED Flashlight
  • Large LCD Display
  • High/Low RF Power Switchable
  • 25KHz/12.5KHz Switchable
  • Emergency Alert
  • Low Battery Alert
  • Battery Saver
  • Time-out Timer
  • Keypad Lock
  • Monitor Channel
  • Channel Step: 2.5/5/6.25/10/12.5/25KHz
  • ROGER SET



BAOFENG UV-5R Compare Products


■ Dual band, dual display, dual standby■ A/B band independent operation
■ 128 groups channels storage■ Shortcut menu operation mode
■ VFO & Memory channels scan■ Emergency Alarm
■ Tri-color background light selectable■ 0~9 grades VOX selectable
■ PTT & ANI ID■ FM radio
■ Voice companding■ 50 CTCSS/104 DCS
■ PC programmable
■ Wide/Narrow Band(25kHz/12.5kHz)■ Transmitter time-out timer(TOT)
■ High/Low TX power selectable■ Busy channel lock-out(BCLO)
 Specifications:
Item numberUV-5R
General
Frequency Range65-108MHz(FM Receive only)
136-174MHZ and 400-480MHZ (TX/RX)
Channel No.128
Frequency Stability±2.5ppm
AntennaHigh gain DualBand antenna
Antenna Impedance50Ω
Operating VoltageDC 7.4V
Mode of operationSimple or semi-duplex
Dimension(W x H x D)
100 x 52 x 32 mm,>
Weight250g(including battery, antenna)
Transmitter
Output power4W / 1W (Max 5W)
Modulation Mode16kΦF3E / 11kΦF3E
Maximum deviation<5kHz(Wide) / <2.5kHz(Narrow)
Spurious Radiation<7μW
Adjacent Ch. power≤-65dB(Wide) / ≤-60dB(Narrow)
Pre-emphasis characteristics6dB
Current≤1.6A(5W)
CTCSS/DCS deviation0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow)
Intermediation sensitivity8-12mv
Intermediation distortion<10%

Earpiece / mic type : Kenwood Plug type
Antenna : SMA -Female
