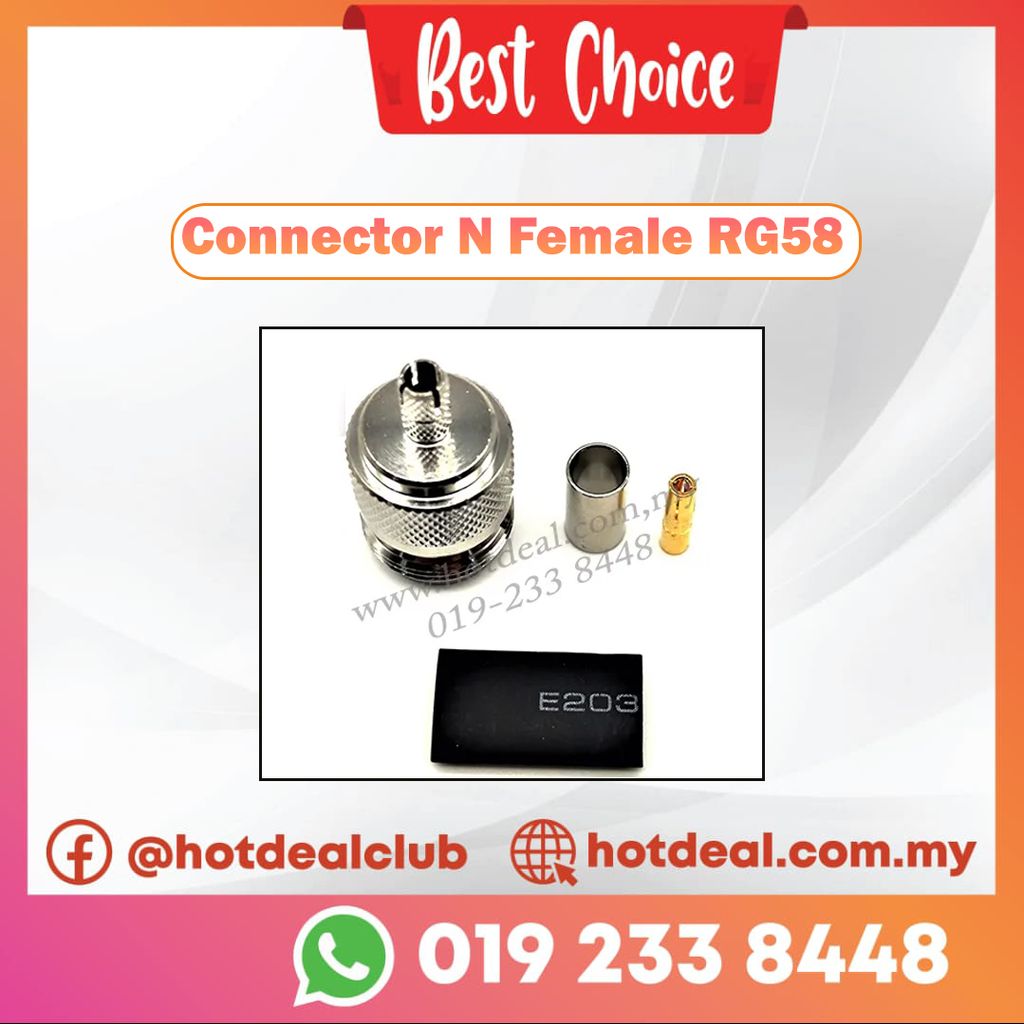

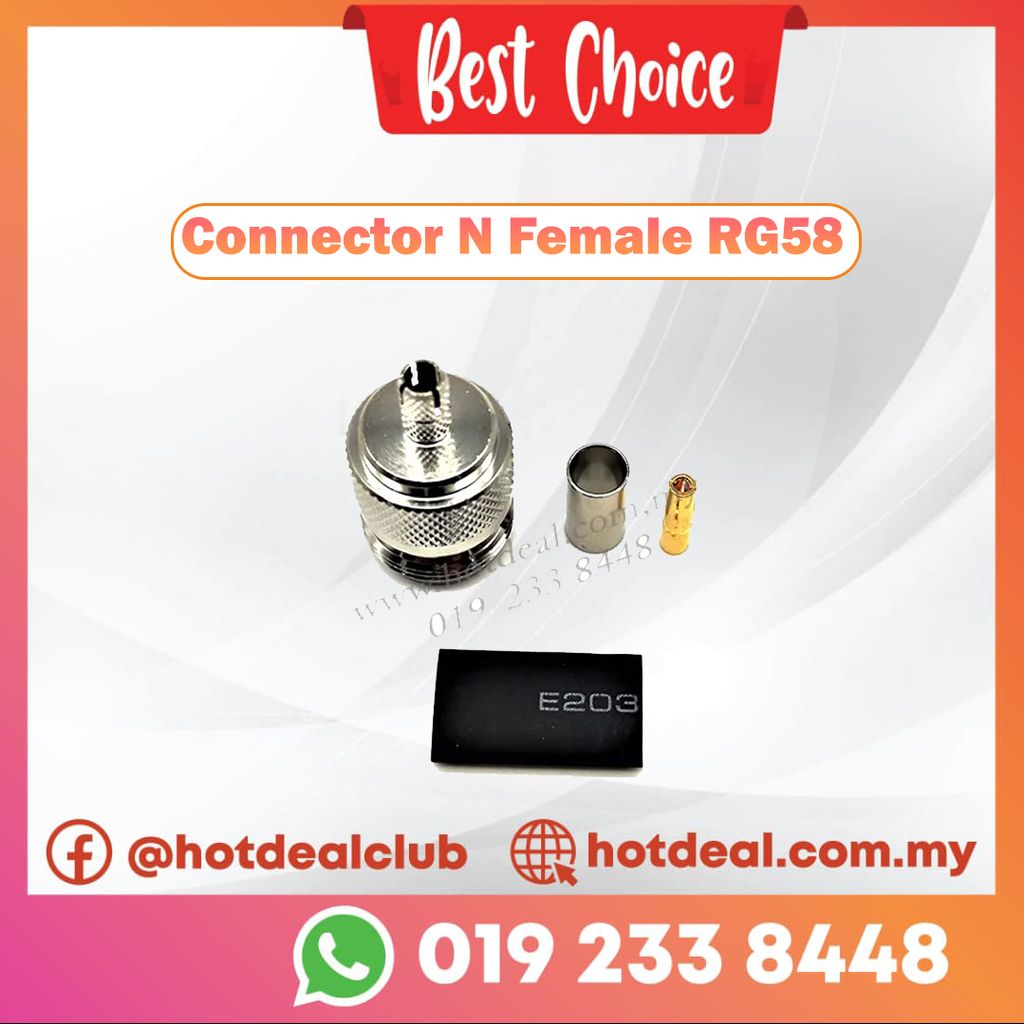

Connector N female RG58

RM 20.00

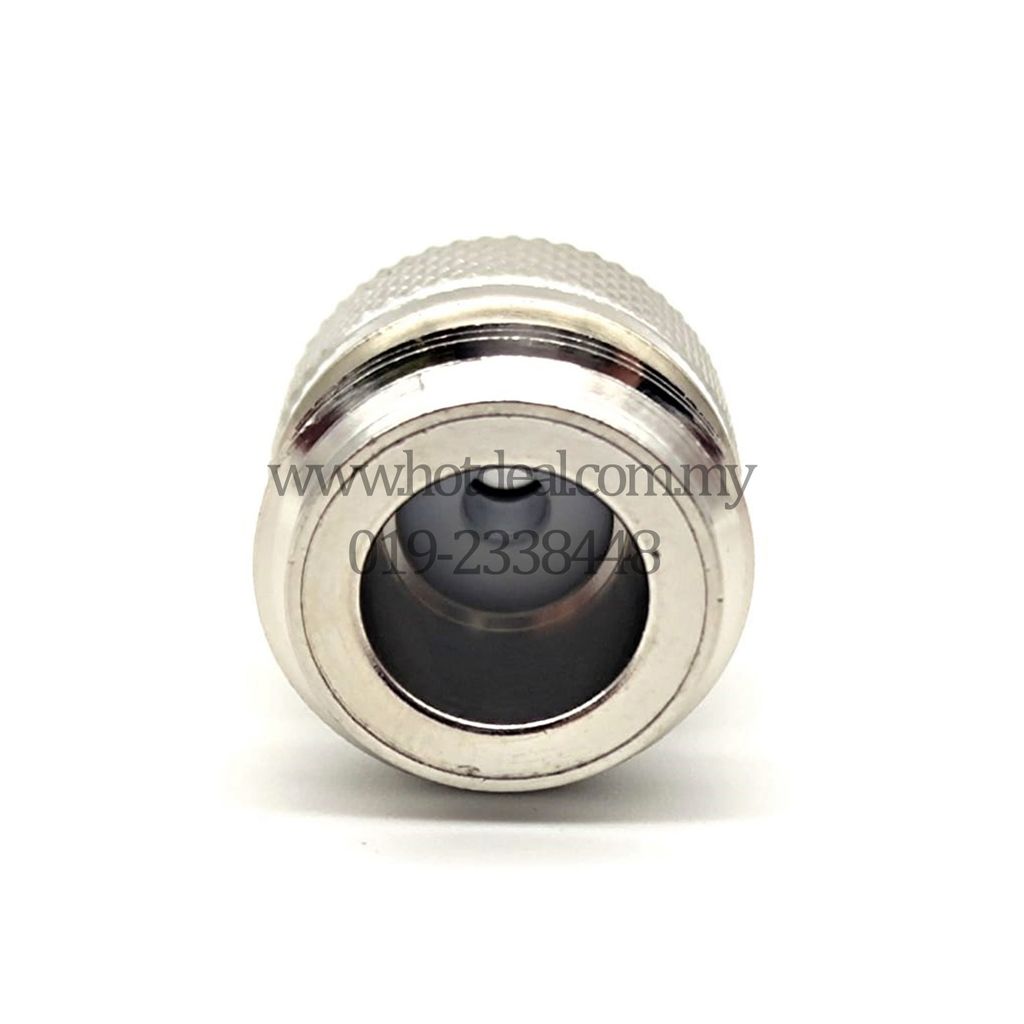

N female crimp connector for RG58 cable



Series N are very popular screw-coupling middlepower coaxial connectors,which have the excellent performances of vibration proof,high reliability,superior electrical and mechanical properties,are widely used for communication applications.



The interface dimensions and technical characteristic are in accord with the specifications of MIL-STD-348A-304,IEC 60169-16 and CECC 22210.



Specifications:

is_customized: Yes

Application: RF

Brand Name: Saide

Gender: Female

Model Number: N-KC-3

Type: N



Key Performance

Temperature range

-65~+165

Insulation resistance

≥5000MΩ

Characteristic impedancd

50Ω

Dielectric Withstanding voltage

1500V

 Frequency range

 0~11GHz

Contact resistance

Center conductor

≤1mΩ

Outer conductor

≤0.2mΩ

VSWR

≤1.30

Durability

500 Cycles

Material And Plating

Body

Brass , gold/nickel plated

Male center contacts

Brass , gold plated

Female center contacts

Beryllium copper or phosphor bronze , gold plated

Insulators

PTFE

Gaskets

Silicone rubber

Crimp ferrules

Copper alloy , nickel plated
