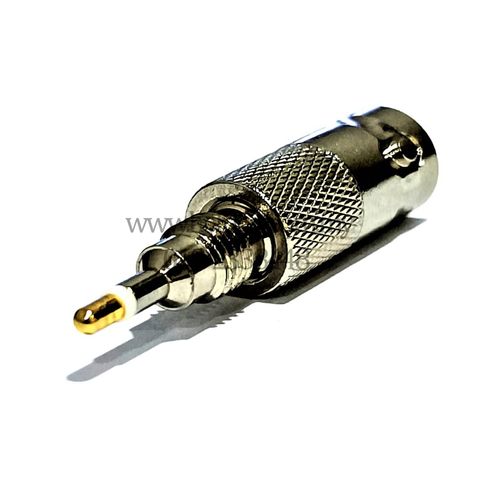

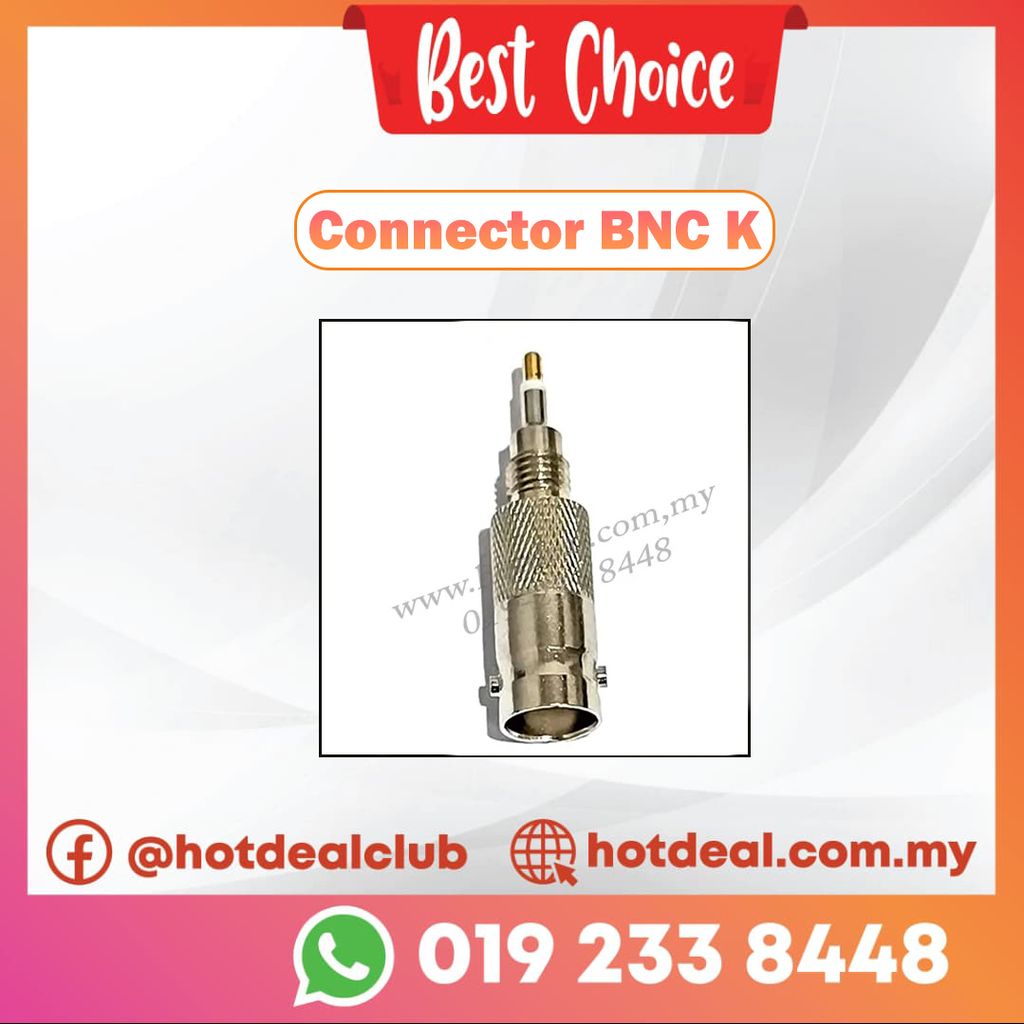

Connector BNC-K CS-2-5

RM 20.00

Specifications:

Series of SMA products one application extensive small-scale coaxial person who join that whorl join. It meet with the standard of MIL-C-39012, IEC169-15 & CECC22110. It has reliable characteristics, durable, performance are excellent, long life-span. Suitable for the microwave equipment and body of the digital communication system and join the body in the cable or the micro-strip line frequently in the loop frequently.



Place of Origin: China (Mainland)
Brand Name: Jac-Tech
Model Number: BNC-K/CS2.3
Type: BNC
Application: RF, RF
Gender: Female
Material: Brass
Body: Brass
Pin: Brass
insulator: PTFE



Mechanical Characteristics:

Characteristic Impedance:

50Ω

Frequency Range:

0-11GHz

Wishstanding Voltage:

≥750-1500V,50Hz

Working Voltage:

≥250-500V,50Hz (see level)

≥65-125V,50Hz (Height 21000M)

Insulation Resistance:

5000mΩ

Insulation Resistance:

Inner conductor: ≤5mΩ

Outer conductor: ≤5mΩ

RF leakage(1GHZ):

Flexible: ≥60dB

Semi-rigid cable: ≥70dB





Material



Pin conductor:

Brass/Beryllium copper--Gold plated

Body / Outer conductor

Beryllium copper--Gold plated

Stainless steel--Passivation

Brass--Gold plated / Ternary Alloy (Cu+Zn+Sn)

Phosphor bronze --Gold plated

Plug:

Beryllium copper / Phosphor bronze--Gold plated

crimping sleeve:

Brass--Gold plated

Insulator:

PTFE / PFA

Sealing

Silastic
